Inclined Lift Zelfenschanze
Montafon Nordic Sportzentrum GmbH, Tschagguns, Austria

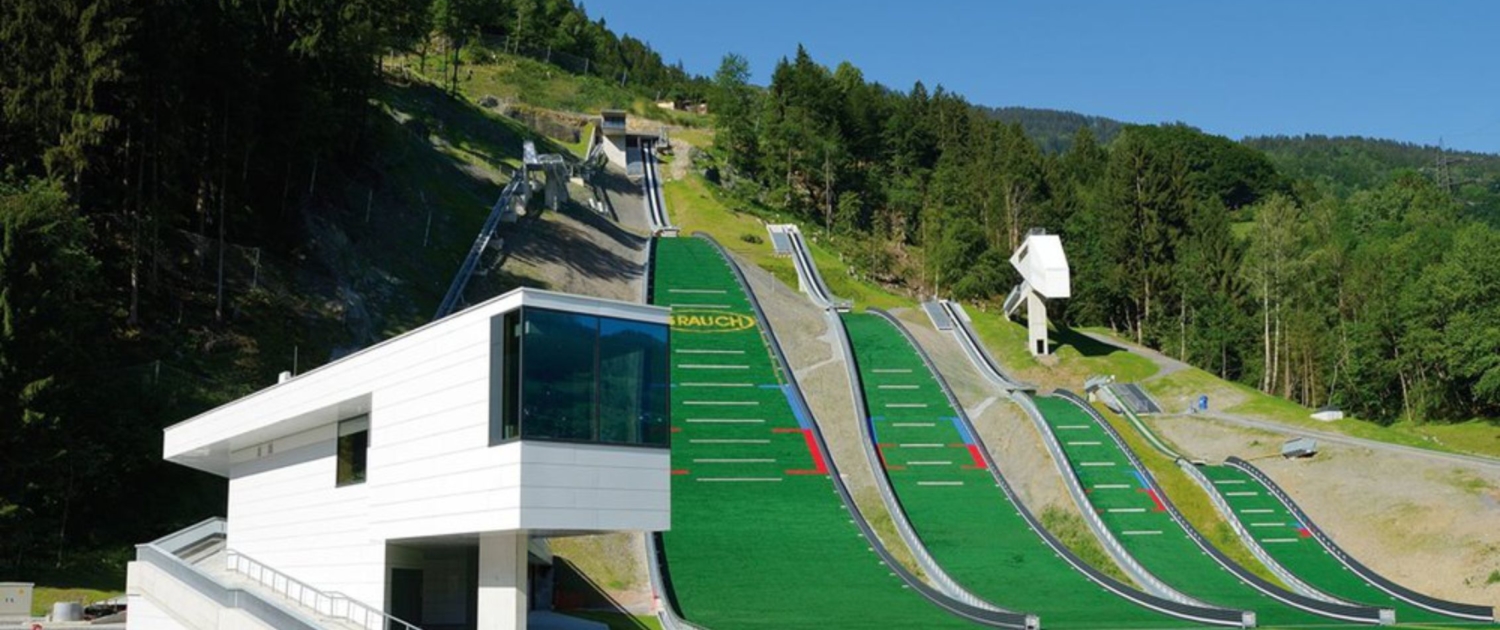

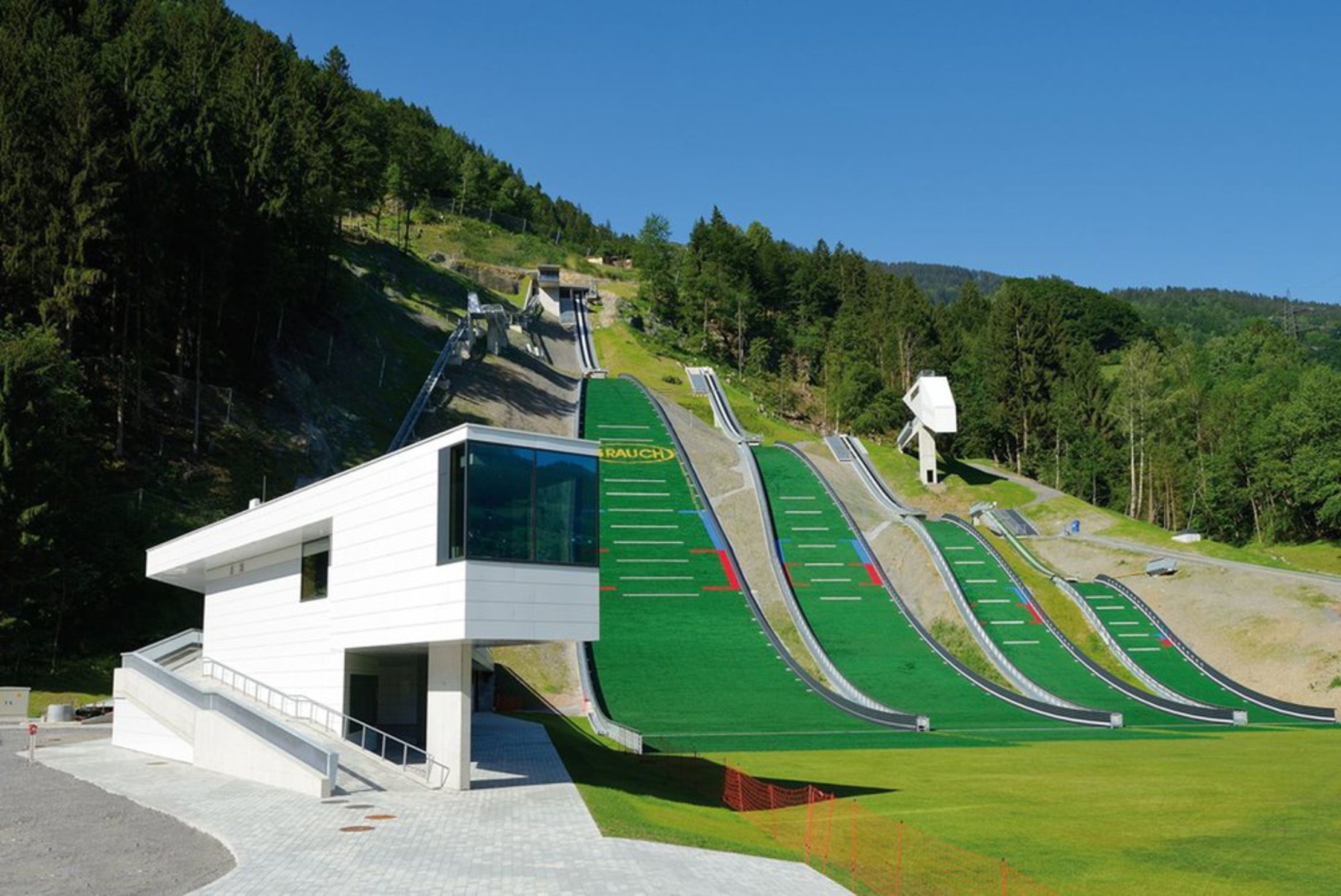

The four ski jumps with hillsizes 108, 66, 40 and 22 m form the centerpiece of the Nordic concept in Vorarlberg’s Montafon valley. At the location of the former Zelfenschanze (1937 it was the largest ski jump in Austria!), an architecturally elegant complex was built with harmoniously embedded jumps in the landscape
The ski jumping facility Tschagguns is a modern and innovative center for Nordic skiing as an impulse for the next young talents, the performance and mass sports as well as for tourism.
General
Year of Construction: 2014
System: Inclined Lift
Drive: Traction Drive
Topographical Data
Length: 244 m
Difference in Level: 107 m
Inclination: 16 – 34 °
Track
Rail Type: HEA-Beams
Rail Gauge: 1.200 mm
Operating Data
Load Capacity: 16 passenger
Travel Speed: 2 m/s
Capacity: ca. 175 pphd (pers./h/direction)
