Inclined Lift Hopsi-Express

Planai-Hochwurzen-Bahnen GmbH, Schladming, Austria

People mover of the latest iCab® generation:

The lift with inclined track connects the ski school gathering point near the top station of the Planai cable car with the family ski zone Märchenwiese / Hopsi’s Winterkinderland. In this way, it replaces the previous transport of visitors, ski students and families by means of snow groomer shuttles and thus significantly improves the accessibility and safety of the beginner ski zone “Märchenwiese”.

In summer, this facility is also used for the summer children’s land and the transport of strollers, wheelchair users and toddlers to the water world and will also be incorporated into the high ropes course.

Families can use the elevator in summer also for overcoming the altitude difference to the top station of the Planai cable car.

General

Year: 2018
System: Inclined Lift
Drive: Traction Drive

Topographical Data

Length: 211 m
Difference in Level: 68,4 m
Inclination: 22 – 16 °

Track

Rail Type: Round Tube dia, 89mm
Rail Gauge: 1000 mm

Operating Data

Load Capacity: 14 passenger
Travel Speed: 2,0 m/s
Capacity: ca. 166 pphd (pers./h/direction)

Previous Previous PreviousNext Next Next
1234

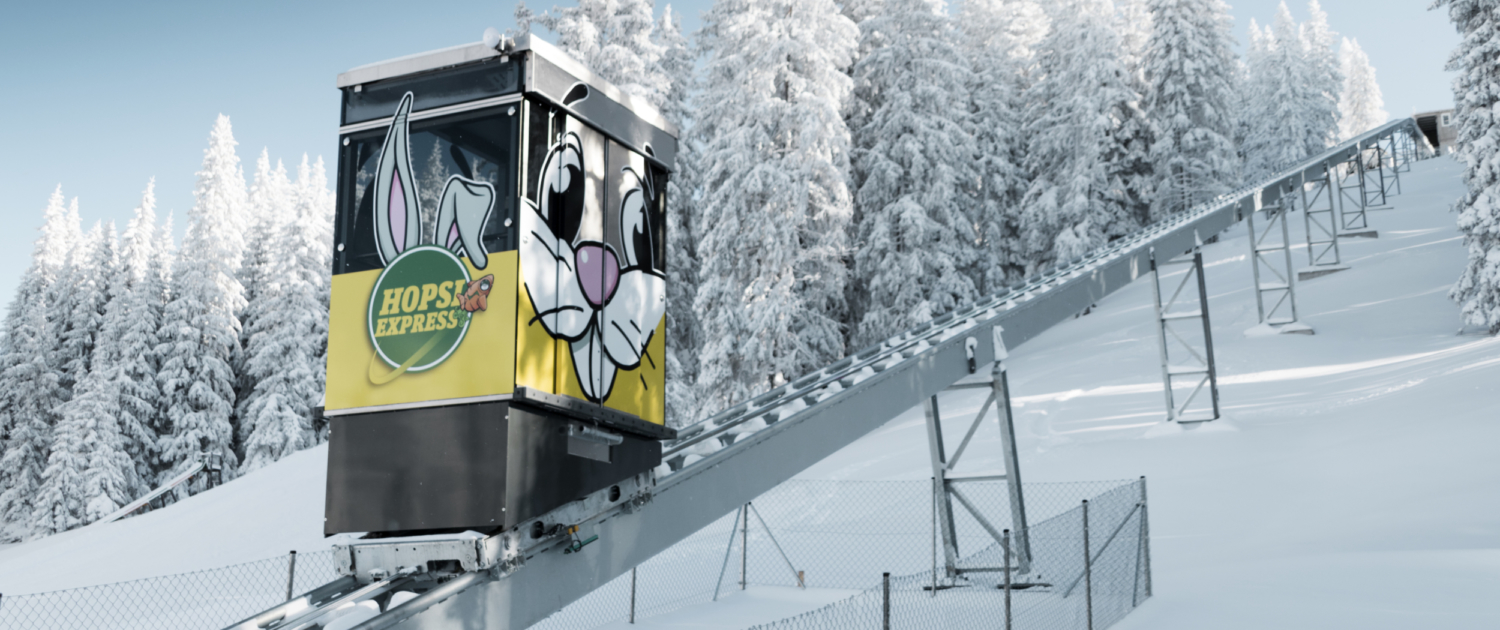

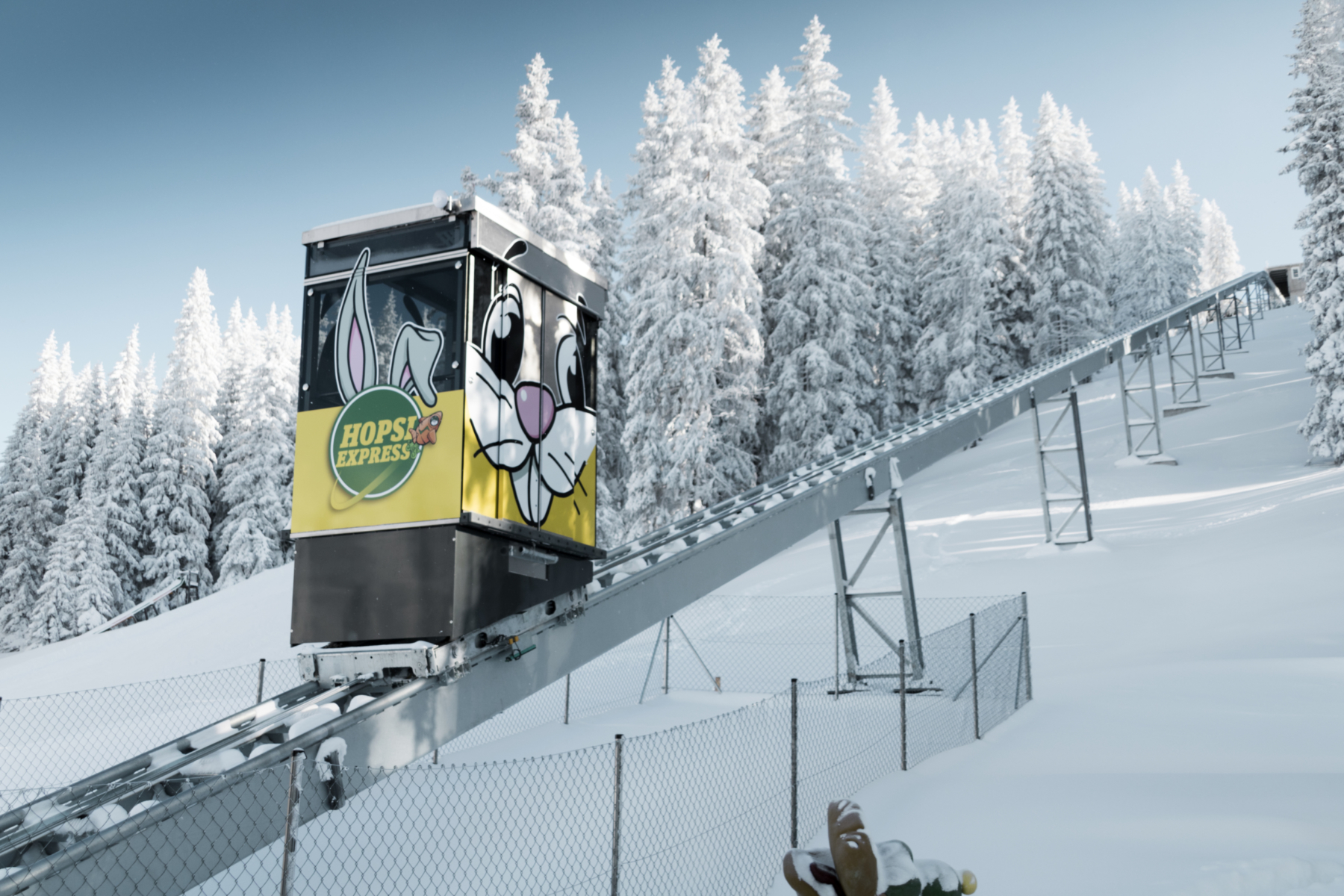

Open image in lightbox: Schladming_01 Open image in lightbox: Schladming_01

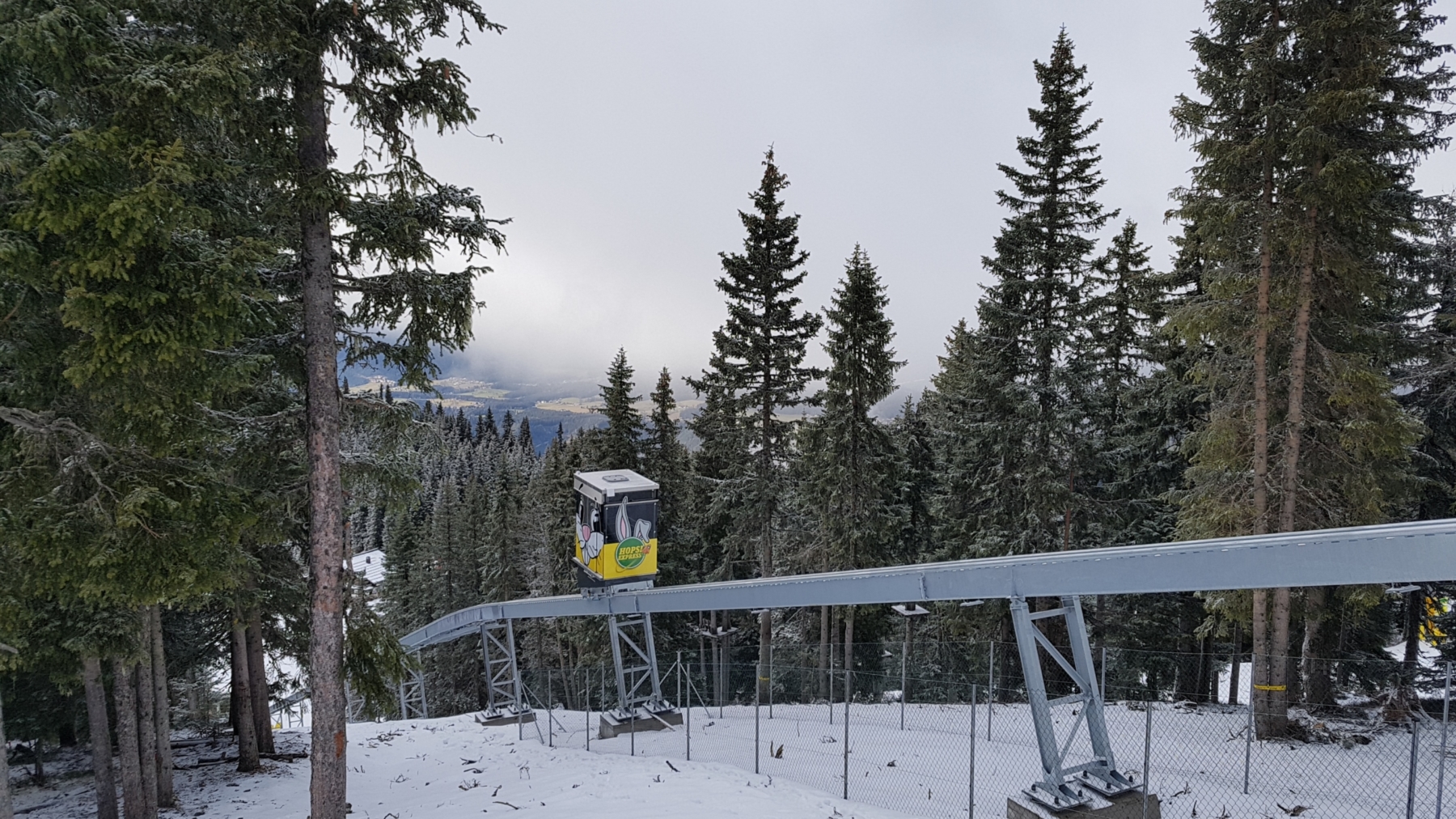

Open image in lightbox: Schladming_00 Open image in lightbox: Schladming_00

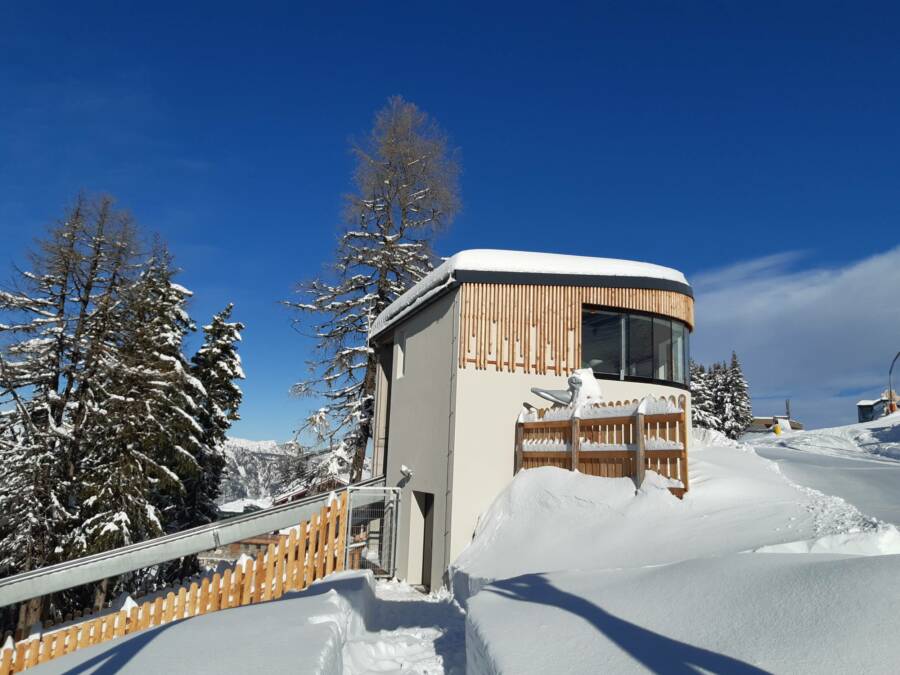

Open image in lightbox: Schladming_03 Open image in lightbox: Schladming_03

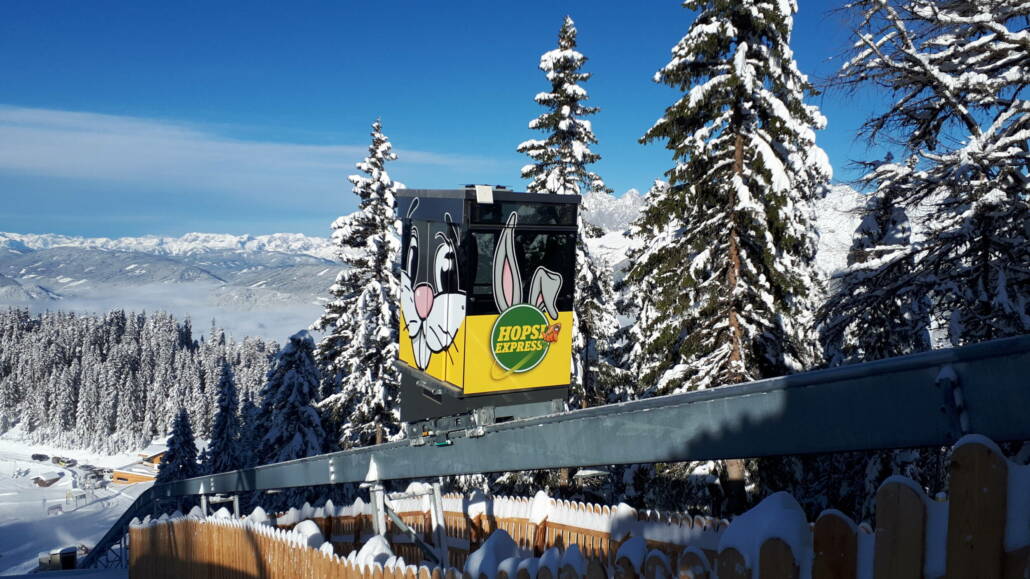

Open image in lightbox: Schladming_02 Open image in lightbox: Schladming_02
